NB/Tablet 散熱模組

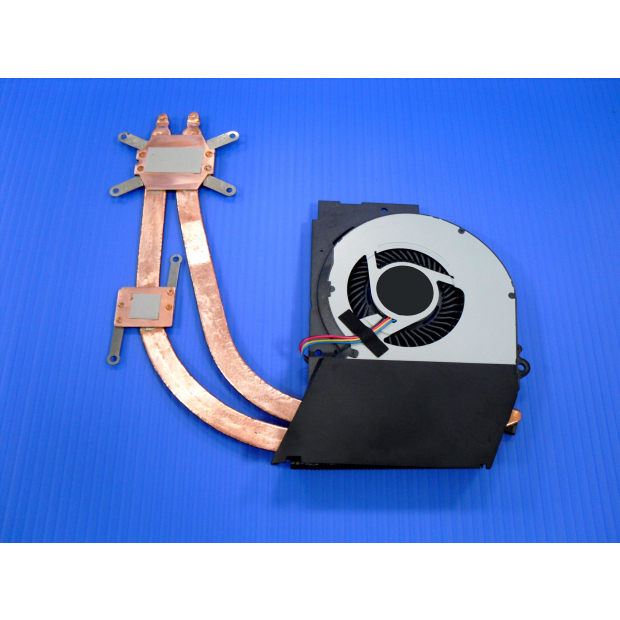

Module No. CCI10208
Heatsink Dimension L(149.8mm) x W(148.6mm) x H(8.9mm)
Fan Dimension 65mm x 63mm x 8mm
Max. Air Flow 4.35 CFM
Max. static Pressure 17.6 mm-H2O

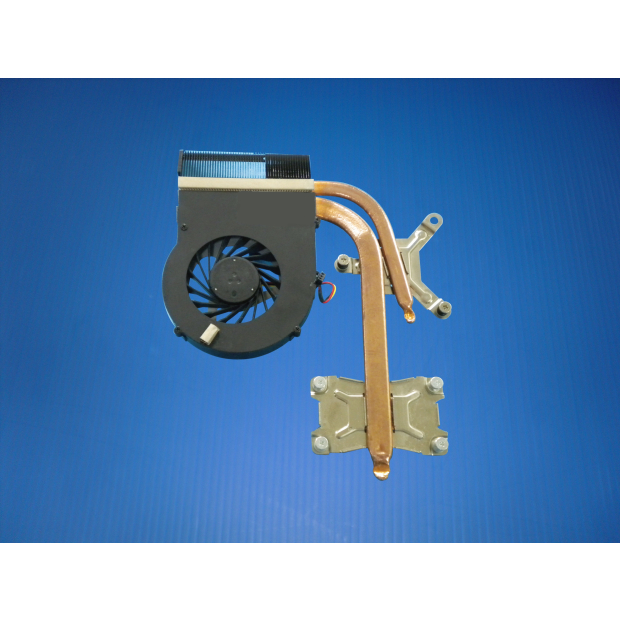

Module No. CCI10153
Heatsink Dimension L(157.13mm) x W(128.75mm) x H(18.4mm)
Fan Dimension 71.2mm x 70.3mm x 13.4mm
Max. Air Flow 8.16 CFM
Max. static Pressure 12.9 mmaq

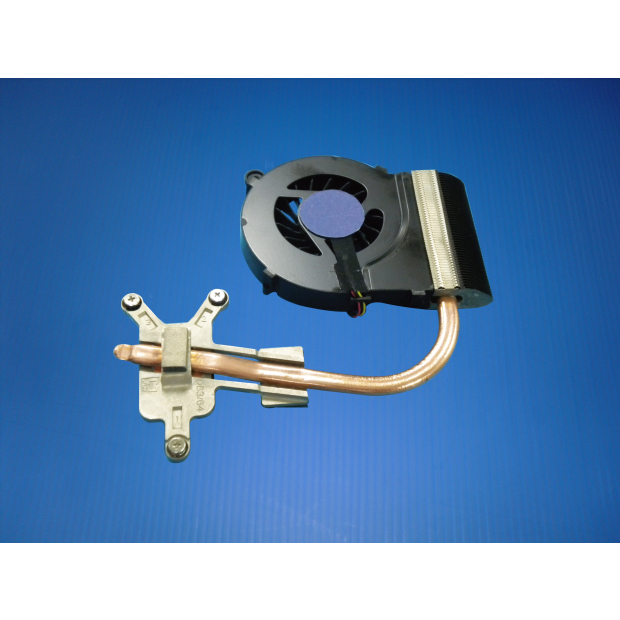

Module No. CCI09201
Heatsink Dimension L(131.83mm) x W(110.07mm) x H(11.06mm)
Fan Dimension 71.52mm x 67.33mm x 12.3mm
Max. Air Flow 7.356 CFM
Max. static Pressure 14.18 mmaq

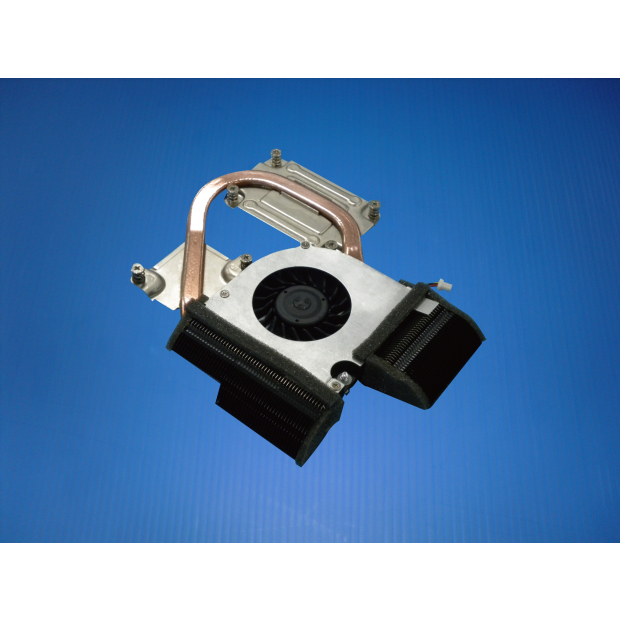

Module No. CCI09195
Heatsink Dimension L(120mm)xW(110mm)xH(20mm)
Fan Dimension 60mm x 60mm x 11mm
Max. Air Flow 5.078 CFM
Max. static Pressure 5.827 mm-H2O
